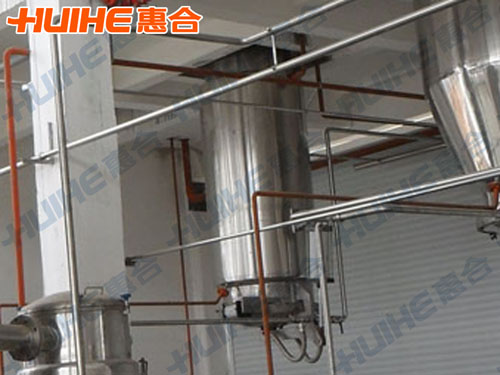

Multi-function Vertical Wimble Extraction Tank

Multi-function vertical wimble extraction tank is often referred to as vertical wimble extraction tank. It has the advantages of high efficiency, convenient operation, CIP cleaning system inside the tank configuration meet CGMP standards.

Structure of Multi-function Vertical Wimble Extraction Tank

The multi-function extraction equipment includes: extraction tank, bubble trap, gas-water separating machine, congealing machine, cooling machine, oil-water separating machine, medicine pumps, pipe line filters and internal connection.

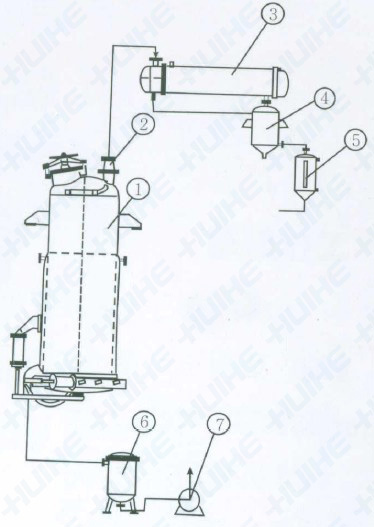

Multi-function vertical wimble extraction tank structure figure explain: 1, extraction tank 2, defoaming machine 3, congealing machine 4, cooling machine 5, oil-water separating machine, 6, filter 7, oil-water separating machine

Usages of Multi-function Vertical Wimble Extraction Tank

This extraction equipment is to service at such industries as China traditional drug, plants, animals, foodstuff and chemistry for the technologies such as normal pressure, mini pressure, water decocting, and warm immersion, thermal circumfluence, compelled recycle and leakage, extraction of aroma oil and reclamation of organic. It can also be used for colleges and universities, research institutes and enterprises and institutions in the laboratory research and test in the production line.

Characteristics of Multi-function Vertical Wimble Extraction Tank

1. Long and thin shape, accounts for a bigger space of the heat and mass transfer are beneficial, to shorten the heating time, extraction efficiency, suitable for alcohol extraction, diacolation system.
2. Slag on the door has a bottom heating, make medicinal herbs extract more completely.
3. The equipment in the part contacting materials adopts stainless steel, with good corrosion resistance, durable, in line with the GMP requirements.

Technical Parameters of Multi-function Vertical Wimble Extraction Tank

Specification	TQ-Z-1.0	TQ-Z-2.0	TQ-Z-3.0	TQ-Z-6.0	TQ-Z-8.0	TQ-Z-10
Volume	1200L	2300L	3200L	6300L	8500L	11000L
Tank design pressure	0.09Mpa
Jacketed layer design pressure	0.3Mpa
Compressed air pressure	0.6～0.7Mpa
Feed orifices diameters	400			500
Heating area(㎡)	3.0	4.7	6.0	7.5	9.5	12
Condensation area (㎡)	4	4	5	5	8	10
Cooling area(㎡)	1			2
Filter area (㎡)	3			5
Slag discharge door diameters(mm)	800			1000
Gas consumption（kg/h）	245	325	345	645	7200	8500
Stirring speed(rpm)	25
Reducer model	BLD 2-4-59	BLD 3-4-59	BLD 4-4-59	BLD 7.5-5-59	BLD 7.5-5-59	BLD 11-5-59
Motor power(KW)	2	3	4	5.5	5.5	7.5
Machine net weight(kg)	1800	2050	2400	3025	4030	6500
