Stainless Steel Fermentation Tank

Stainless steel fermentation tank is widely used in the field of dairy, beverage, biotechnology, pharmaceutical and fine chemical industry. The tank equipped with laminate and insulating layer, can heat, cool and insulate. The tank body and up &down head (or prototype) are processed using R angle. The inner surface is mirror-polished, no dead corners, while the fully enclosed design ensures that the material is always at a state of no pollution to mix and ferment. The machine is equipped with air-breathing hole, CIP cleaning nozzle and manhole etc.

Classification of Stainless Steel Fermentation Tank

1. According to Structure: opening on the head & conical sealed head on the bottom, up & down elliptical sealed head;

2. According to Heating Type: there are Steam Heating and Electric Heating;

3. According to Volume: there are 100L-1000L, also can design and facture in accordance with customers’ requirements.

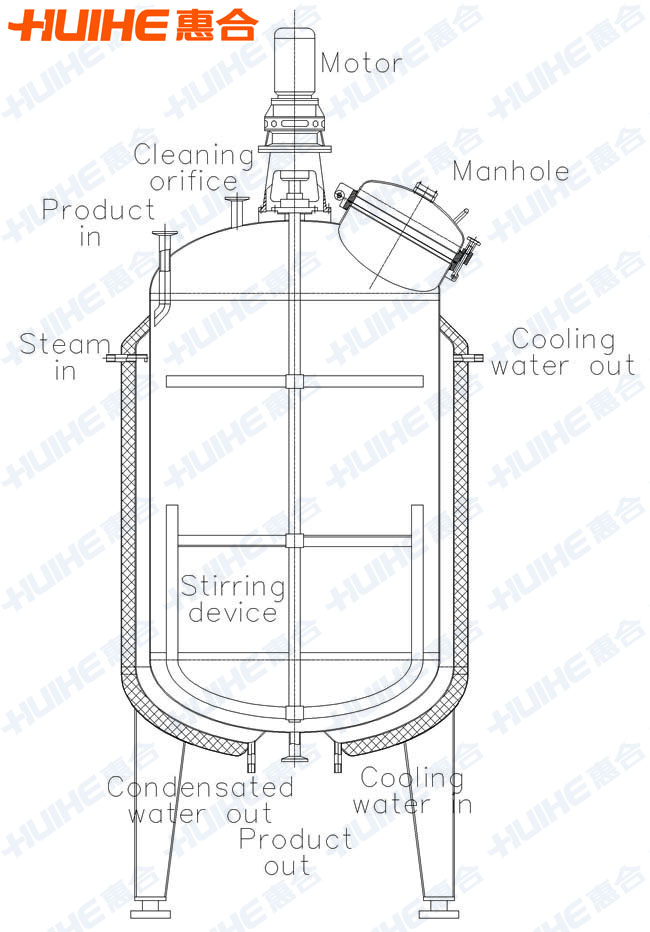

Structure of Stainless Steel Fermentation Tank

Characteristics of Stainless Steel Fermentation Tank

1. It is a kind of stainless steel tank and can be CIP cleaned online, SIP sterilization (121°C/0.1MPa).
2. Designed in accordance with sanitary requirement, so the structural design is very user-friendly and easy to operate. While the smooth transmission, low noise.
3. There is appropriate diameter; the stirring device is made on demand, energy-saving, stirring, good fermentation effect.
4. The inner surface is mirror-polished (roughness Ra≤0.4µm); the weld of the inner pot with inlet, outlet, sight mirror and manhole use stretch flanging arc transition. No dead corners ensure the reliability and stability in the producing process.

Technical Parameters of Stainless Steel Fermentation Tank

Volume	300L	400L	500L	600L	800L	1000L	1500L	2000L	3000L
Body diameter（mm）	Φ800	Φ800	Φ900	Φ1000	Φ1000	Φ1000	Φ1200	Φ1300	Φ1600
Body height（mm）	600	800	800	800	1000	1220	1220	1500	1500
Motor power（kw）	0.55	0.55	0.75	0.75	0.75	0.75	1.5	2.2	3
Stirring speed(rpm)	36r/min
Working pressure	≤0.09Mpa
Working temperature	＜100℃
Accessories	Sanitary manhole, cleaning ball、safety valve、pressure gauge

Notes:

1. The technical parameters of fermentation tank is standard configuration. Any specific requirements, please point out.

2. The jacket working pressure≤ 0.09Mpa also can be made according to customers’ requirements.

3. The process parameters that need provided when choosing the fermentation tank: the nature of material, working pressure, temperature, specific requirements, etc.
