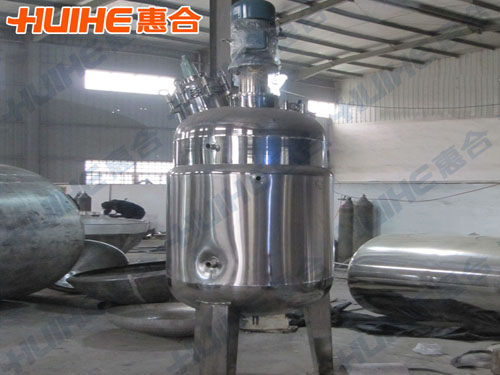

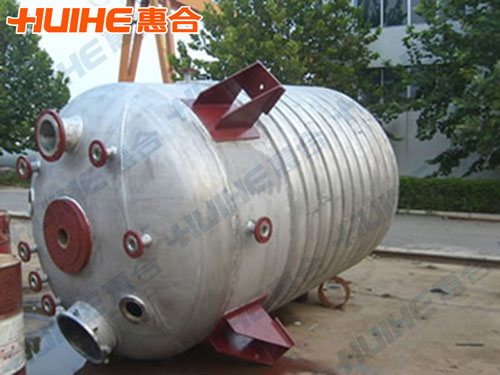

Outside Dish Tube Reaction Vessel(Tank)

Outside dish tube reaction vessel (tank) belongs to stainless steel tank. Hangzhou HUIHE Machine Facture Co., Ltd outside dish tube reaction vessel with rapid heating, high temperature resistant, corrosion resistance, health, no environmental pollution, there is no need to boiler automatic heating, convenient use, etc.

Structure of Outside Dish Tube Reaction Vessel(Tank)

Outside dish tube reaction vessel consists of pot body, pot cover, mixer, jacket, bearing and gear, shaft sealing device (according to process need to be adopted with insulation structure), according to the material production requirements and user needs and determine the pressure, temperature, material, mixing plant type, speed, sealing structure, heating mode and so on carries on the design and manufacture. Reaction vessel variety specification variety, the pressure under 10 maps, is 0.1 ~ 24 cubic volume.

Usages of Outside Dish Tube Reaction Vessel(Tank)

The reaction equipment widely used in petroleum, chemical, rubber, pesticide, dye, medicine and food, used to complete the sulfide, nitration, hydrogenation, alkylation, polymerization, condensation, the technological process, is to participate in the reaction material mix as the premise, for heating, cooling, and liquid extraction and gas absorption process of physical change all adopt mixing plant are needed to get to the good effect, and can design for clients, processing outside dish tube reaction vessel.

Characteristics of Outside Dish Tube Reaction Vessel(Tank)

Compared with the normal jacket reaction vessel outside dish tube reaction vessel has many advantages.

1、 Pot, pot cover, agitator, etc all parts adopt OCr18Ni9 or 1 cr18ni9ti stainless acid-resistant steel plate, so grade accord with national health standards;

2、 With less investment, quick production, high efficiency;

3、 Have quick heating, high temperature resistant, fast heat transfer, corrosion resistance, health, pollution-free;

4、 Without the boiler can be automatic heating, use very convenient;

5、 Reduce the vessel body wall thickness, and improve the body carrying capacity;

6、 Reduce the overall diameter of the kettle body, workshop layout.

Technical Parameters of Outside Dish Tube Reaction Vessel(Tank)

Specifications	Actual capacity(L)	Simplified diameter(mm)	Outside dish tube heat transfer area(M2)	Inside dish tube heat transfer area(M2)	Motor power(KW)
500L	550	900	2.438	2	2.2
1000L	1100	1100	2.867	2.6	4
1500L	1650	1200	3.537	3.1	4
2000L	2200	1300	4.165	3.8	5.5
3000L	3300	1500	5.569	5.4	7.5
6000L	6600	1800	10.323	8.7	15
10000L	11000	2200	50.345	10.9	22
20000L	22000	2400	101.679	13.8	55

Notes:

1. The technical parameters of reactor tank is standard configuration. Any specific requirements, please point out.

2. The jacket working pressure≤ 0.09Mpa, also can be made according to customers’ requirements.

3. The process parameters that need provided when choosing the deployment tank: the nature of material, working pressure, temperature, specific requirements, etc.
