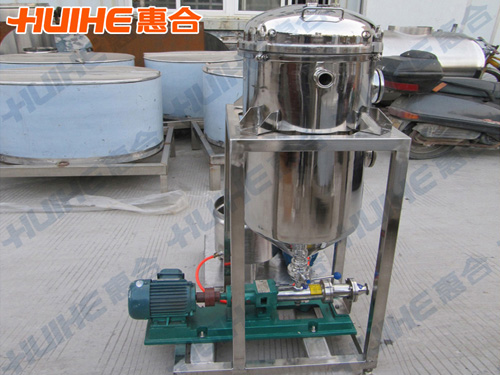

Vacuum Degassing Tank Manufacturers

The vacuum degassing tank also known as vacuum takes off angry machine or vacuum degasser，is one kind of the stainless steel tank and it's used for homogenized fruit juice to degas in vacuum condition, in order to prevent the oxidation, and extend the shelf life of fruit juice.

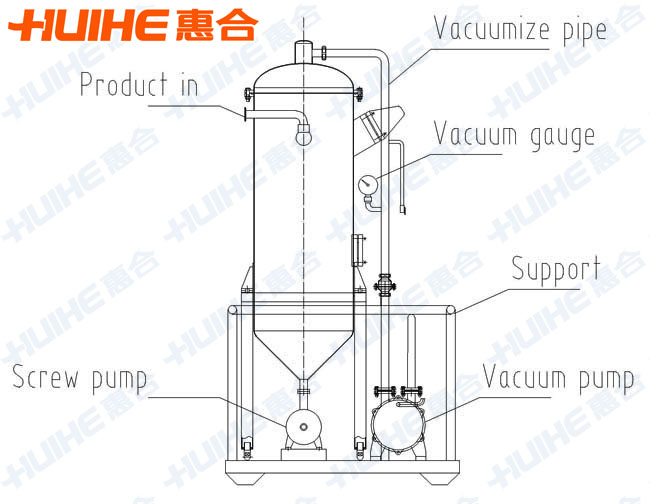

structure of Vacuum Degassing Tank

Characteristics of Vacuum Degassing Tank

1. Can greatly shorten the degassing time of heating or cooling system exhausting water, was very beneficial for operation system to the first test .

2. Remove gas in system, prevent air resistance to ensure that the system stable and reliable operation.

3. Eliminate water pump cavitations’ erosion, reduce the system noise .

4. The removal of oxygen in water reduces the aerobic corrosion of the equipment, prolong the using time.

5. Due to removal of gas in the water, the surface of heat exchanger will not covering gas bubble, improve the heating efficiency.

6. The working time and cycle can be adjust according to need.

7. Single applicable system volume can be reach up to 150 m3, and can be parallel used.

8. Equipment installation convenient, automatic operation, safe and reliable, easy to maintenance.

Technical Parameters of Vacuum Degassing Tank

Model	HEZT-1	HEZT-2	HEZT-3	HEZT-10	HEZT-15
Processing power	1000L/H	2000L/H	3000L/H	10000L/H	15000L/H
Vacuum degree	6.4~8.7×10pa
Motor power	3.95kw	4.5kw	4.5kw	8kw	9.5kw
Body size	1035×750×2840	1135×780×3040	1185×800×3140	1600×1700×3250	1750×1500×3500
Weight	270kg	350kg	450kg	600kg	800kg
