Electric Heating Cold and Hot Cylinder

Electric heating cold and hot cylinder made of inside and outside the interlining, vertical agitator, electric heat pipe, etc. Cylinder for open cylindrical stainless steel container, can be acid proof, heat preservation, cooling, and has the advantages of beautiful and practical.

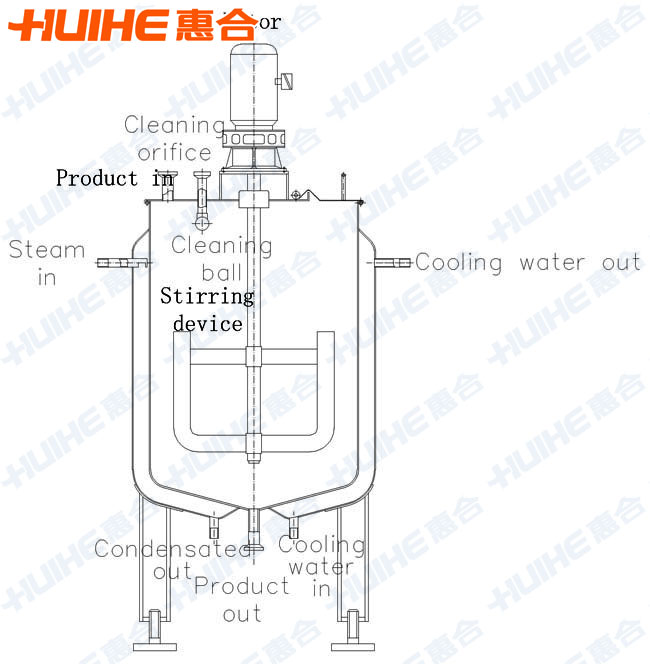

Structure of Electric Heating Cold and Hot Cylinder

Usages of Electric Heating Cold and Hot Cylinder

The cold and hot cylinder (tank) is a kind of stainless steel tank and suitable for dairy products processing, pastures, food, pharmaceutical, cold drinks and chemical industries, as a necessary equipment for heating, cooling, heat preservation, or storage of slurry, especially suitable for pasteurized milk and heat preservation, is the necessary equipment in ice cream production line, with heat exchange effect, reasonable structure, etc.

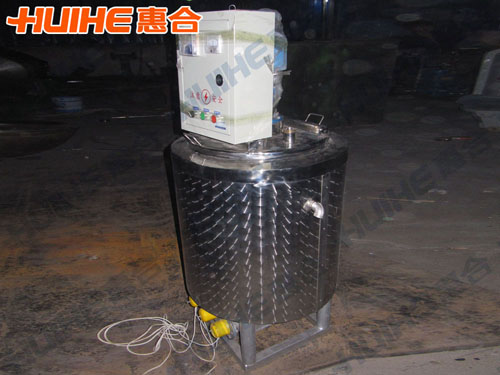

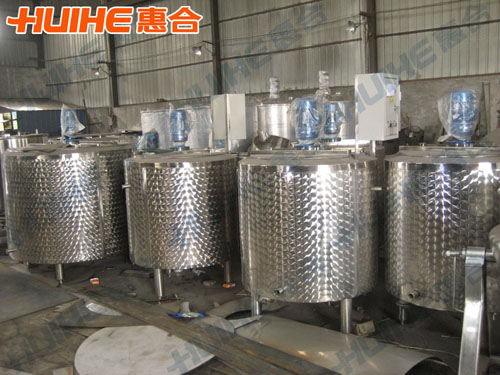

Details of Electric Heating Cold and Hot Cylinder

1、 Volume: according to the using demand;
2、 Tank: inner surface mirror polishing processing, roughness Ra < 0.4 um;
3、 Cover: cover for a double doors can open, easy to clean, inside and outside surface mirror polishing treatment (roughness Ra < 0.4 um);
4、 Within the inclined bottom: at the bottom of the tank is 5 ° inclined, put the net material without retention;
5、 Jacketed forms: full jacketed (built-in spiral guide plate), half circular pipe jacket, honeycomb jacket;
6、 Thermal insulation material: fill the pearl cotton, rock wool, or casting polyurethane foam;
7、 Outer shell surface treatment: mirror polish or 2 b or primary inferior smooth sandblasting processing;
8、 Stirring device: top center stirring, reducer output shaft and the impeller shaft adopts loop connection, easy disassembling and cleaning;
9、 Stirring speed: 10 to 120 r/min (constant speed); Blade: the box type, anchor, paddle, etc.;
10、 Leg form: round tube;
11、 Equipment, thermometer (digital display type or dial), import and export of material liquid, spare mouth import and export and import and export of cooling water, steam, etc;
11、 Equipment, thermometer (digital display type or dial), import and export of material liquid, spare mouth import and export and import and export of cooling water, steam, etc;
13、 The in and out of the tube in the mouth opening and tanks welds adopt flanging process arc transition, smooth and easy to clean no dead Angle, beautiful appearance.

Technical Parameters of Electric Heating Cold and Hot Cylinder

Volume	300L	400L	500L	600L	800L	1000L	1500L	2000L	3000L
Body diameter（mm）	Φ800	Φ800	Φ900	Φ1000	Φ1000	Φ1000	Φ1200	Φ1300	Φ1600
Body height（mm）	600	800	800	800	1000	1220	1220	1500	1500
Motor power（kw）	0.55	0.55	0.55	0.55	0.55	0.75	1.5	2.2	3
Stirring speed(rpm)	36r/min
Working pressure	≤0.09Mpa
Working temperature	＜100℃
Accessories	Thermometer、safety valve、pressure gauge

Notes:

1. The technical parameters of cold and hot urn is standard configuration. Any specific requirements, please point out.

2. The jacket working pressure≤ 0.09Mpa also can be made according to customers’ requirements.

3. The process parameters that need provided when choosing the cold and hot tank: the nature of material, working pressure, temperature, specific requirements, etc.
