Steam Heating Cold and Hot Urn

Hangzhou Huihe machine facture Co., Ltd., the production of steam heating cold and hot urn using scope is very broad. In the food, dairy products, chemical, pharmaceutical, beverage and other industries widely used, especially in the beverage, dairy production, often with cold and hot urn to heating of the material, cooling, neutralization, reaction, mixing, etc. Steam heating cold and hot urn adopts full stainless steel, so has the corrosion, high temperature resistant, easy cleaning, heat quickly and evenly, and characteristics of the material is not easy to be polluted, operation is simple and convenient in use process, and to save time, greatly improving the work efficiency.

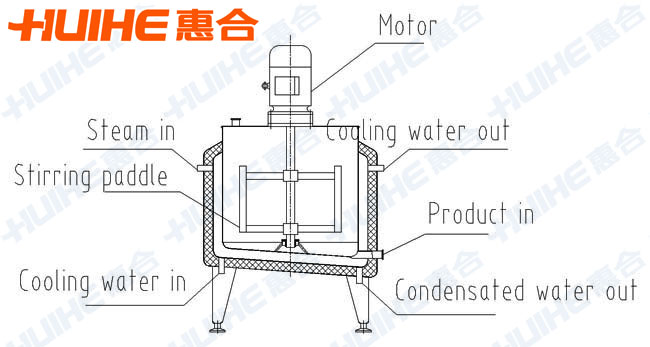

Structure of Steam Heating Cold and Hot Urn

Characteristics of Steam Heating Cold and Hot Urn

cold and hot urn is a kind of stainless steel tank and has the characteristics of energy saving, sound attenuation, corrosion resistance, strong production capacity, easy clean, good isolation, heat preservation performance is good and has cycloid pin gear planetary reducer, material is made of stainless steel manufacturing, etc.

Technical Parameters of Steam Heating Cold and Hot Urn

Volume	300L	400L	500L	600L	800L	1000L	1500L	2000L	3000L
Body diameter（mm）	Φ800	Φ800	Φ900	Φ1000	Φ1000	Φ1000	Φ1200	Φ1300	Φ1600
Body height（mm）	600	800	800	800	1000	1220	1220	1500	1500
Motor power（kw）	0.55	0.55	0.55	0.55	0.55	0.75	1.5	2.2	3
Stirring speed(rpm)	36r/min
Working pressure	≤0.09Mpa
Working temperature	＜100℃
Accessories	Thermometer、safety valve、pressure gauge

Notes:

1. The technical parameters of cold and hot urn is standard configuration. Any specific requirements, please point out.

2. The jacket working pressure≤ 0.09Mpa also can be made according to customers’ requirements.

3. The process parameters that need provided when choosing the cold and hot tank: the nature of material, working pressure, temperature, specific requirements, etc.
