Your are here: Home >> Products >>Jacketed Steam Kettle
Jacketed steam kettle alternate name is steam jacketed kettle, steam and cooking jacketed kettle. It is widely applied in food processing such as candy, medicine, dairy, alcohol, cake, sweetmeat, beverage, cans and other food processing.
Directory
- Live Demonstration of Jacketed Kettle
- Structure of Jacketed Steam Kettle
- Characteristics of Jacketed Steam Kettle
- Technical Parameters of Jacketed Steam Kettle
- Jacketed Steam Kettle Finished Picture
Live Demonstration of Jacketed Kettle

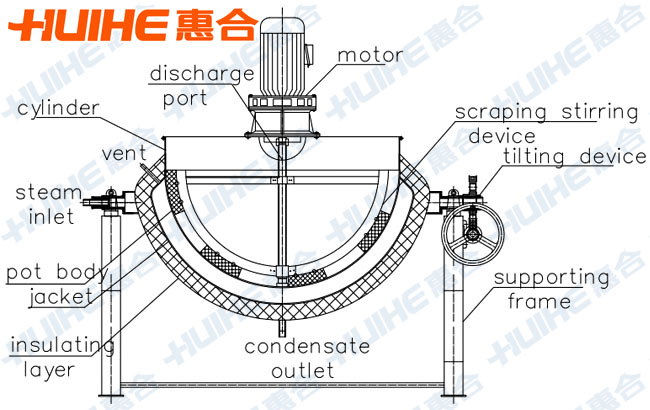

Structure of Jacketed Steam Kettle
Characteristics of Jacketed Steam Kettle
This jacket kettle is considered to be the ideal equipment in the area of improving quality, shortening the time and improving working conditions.
Technical Parameters of Jacketed Steam Kettle
|
Model |
50 |
100 |
200 |
300 |
400 |
500 |
600 |
800 |
1000 | |
|
Caliber（mm） |
Φ600 |
Φ700 |
Φ800 |
Φ900 |
Φ1000 |
Φ1100 |
Φ1200 |
Φ1400 |
Φ1500 | |
|
Depth of Pot（mm） |
400 |
450 |
530 |
630 |
680 |
730 |
780 |
830 |
900 | |
|
Heating area（m2） |
0.45 |
0.58 |
1.12 |
1.42 |
1.75 |
2 |
2.3 |
3.2 |
3.9 | |
|
Boiling time（min） |
5 |
8 |
11 |
14 |
18 |
22 |
25 |
34 |
40 | |
|
Interface size |
Steam pipe |
3/4” |
1” |
2” | ||||||
|
Condensate pipe |
3/4” |
1” | ||||||||
|
Working pressure |
≤0.09Mpa（can be adapted according to customers’ requirement） | |||||||||
|
Stirring speed |
36 r/min（can be adapted according to customers’ requirement） | |||||||||
|
Stirring power（Kw） |
0.55 |
0.55 |
0.75 |
1.1 |
1.1 |
1.5 |
1.5 |
2.2 |
2.2 | |
Notes:
1. The stirring power in the technical parameters of jacketed kettle chart is standard configuration. Any specific requirements, please let us know.
2. Working pressure in the middle layer ≤0.09Mpa, also, this can be adapted according to customers’ requirement.
3. The process parameters that need provided when choosing the Jacketed Kettle: the nature of material, working pressure, temperature, specific requirements, etc.

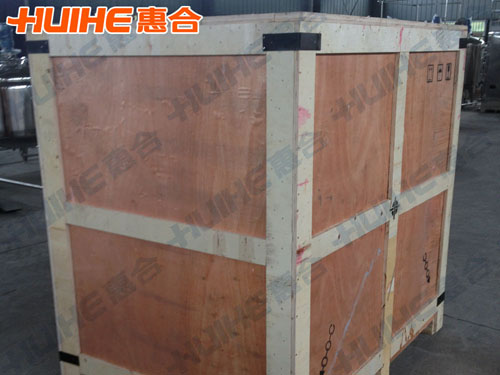

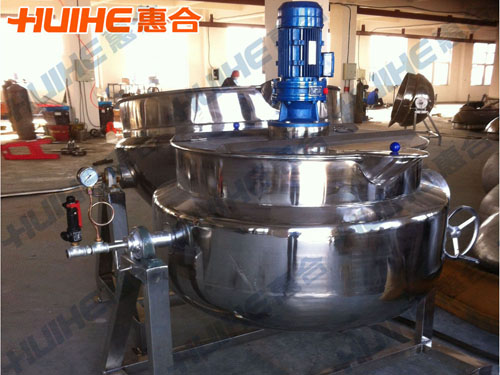

Jacketed Steam Kettle Finished Picture
