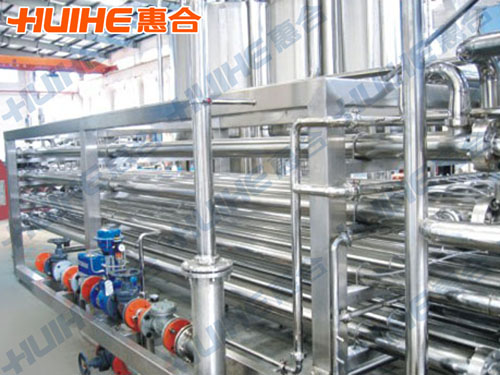

HH-TGS tube-in-tube sterilizer

HH-TGS tube-in-tube sterilizer use for tomato, onion, chili, strawberry, blackberry, carrot, peach, apricot and other material after concentration’s material conducting sterilization.

Live Demonstration of Ketchup Production Line

Characteristics of HH-TGS tube-in-tube sterilizer

This tube-in-tube sterilizer mainly constitute of four level’s tube-in-tube or (multi-tube) heat exchanger, infinitely variable speed pump, retainer, sealed bucket, a hot water generator, support leg, controller, etc

This equipment equipped with heating section, sterilization keep section, cooling section, tube set of simple structure, small resistance.

Material’s heating---keep section’s structure reasonable collocation, guarantee the stability of temperature, the product security.

Cleaning process contains a hot water and cooling water flow. Prevention wall scaling effect heat exchange effect. Bactericidal used hot water heating method of the pipes, to improve the thermal efficiency.

LED display operation screen, PLC system for full automatic device and used in the device of multichannel record instrument temperature record.

Technical Parameters of HH-TGS tube-in-tube sterilizer

Specification	Handling capacity kg/h	Sterilization tempera ture ℃	Cooling tempera ture ℃	Power consum ption KW	Steam evapor ation kg/h	Water consum ption kg/h	Compre ssed air consum ption kg/h	Installation dimension mm
HH-TGS-1	1000	110	32-45	14.1	150	5000	0.1	8000×800 ×1000
HH-TGS-2	2000	110	32-45	19.2	3000	10000	0.1	8000×1000 ×1000
HH-TGS-3	3000	110	32-45	33	450	15000	0.3	8000×1200 ×1200
HH-TGS-6	6000	110	32-45	64.5	900	42000	0.3	8000×1200 ×1800
HH-TGS-8	8000	110	32-45	80.5	1200	56000	0.4	8000×1200 ×1800
HH-TGS-10	10000	110	32-45	110	1500	70000	0.5	8000×1400 ×2000
HH-TGS-12	12000	110	32-45	132	1800	84000	0.5	8000×1400 ×2000
