1, according to filtration precision, it can be divided into: 0.1 um, 0.22 um, 0.45 um, 1 um, 3 um, 5 um, 10 um, 30 um and60 um

2, according to filter core specifications, it can be divided into: 10 ", 20", 30" and 40 ".

3, according to filter core material, it can be divided into: polypropylene (PP), poly (HE), nylon (N66), PTFE (PTEE), assembling partial fluorine ethylene (PVDF)

It has been widely used abroad medicine, chemical, beverage, electronics and water treatment and other industries.

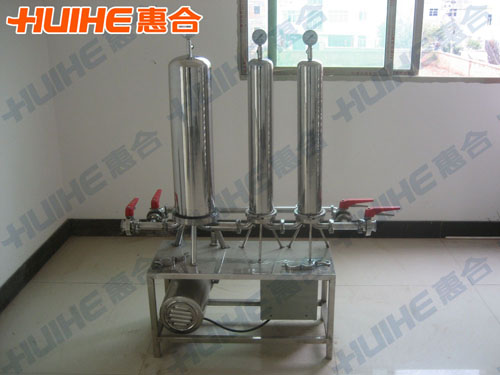

    Micro porous membrane filter composed by folding micro porous membrane filter core and stainless steel (SUS304 or SUS316L) outside tube, assembly single core or multi core filter, filter cylinder adopts fast bolt connection, loading and unloading filter core is very convenient.

    It has characteristics of high filtering precision, fast filter speed, less adsorption, no medium falling, no reveal, corrosion resistant, easy to operate etc, and can dispel the bacteria and particles in injection water and solution. It can form several layers’ filter based on users’ demand, to achieve the best filter effect, widely used in medicine, big infusion, pure water, biological engineering aseptic and clarification.

Model	Flow （L/H）	Filter core	Designed pressure （MPa）
HE-500	500	1R 10 ″	0.6
HE-1000	1000	3R 10 ″/1R 20 ″	0.6
HE-2000	2000	4R 10 ″/3R 20 ″	0.6
HE-2500	2500	3R 20 ″/2R 30 ″	0.6
HE-4000	4000	4R 20 ″/2R 40 ″	0.6
HE-6000	6000	6R 20 ″/3R 40 ″	0.6
HE-8000	8000	4R 40 ″	0.6

Notes:

1、The technical parameters of filter in the diagram are standard configuration, any other requires, please put forward.

2, process parameters that need provided: the material properties, productivity, special requirements, etc.
