Alcohol Precipitation Tank

Alcohol precipitation tank is suitable for alcohol sediment in Chinese medicine, oral liquid, foodstuff, health-protective products and chemical industry. Alcohol sediment is developed from traditional technology, mainly used for freeze Chinese medicine liquid getting fried and condensed or to operate warm alcohol sediment, also can be used to operate water sediment after Chinese herbs being extracted.

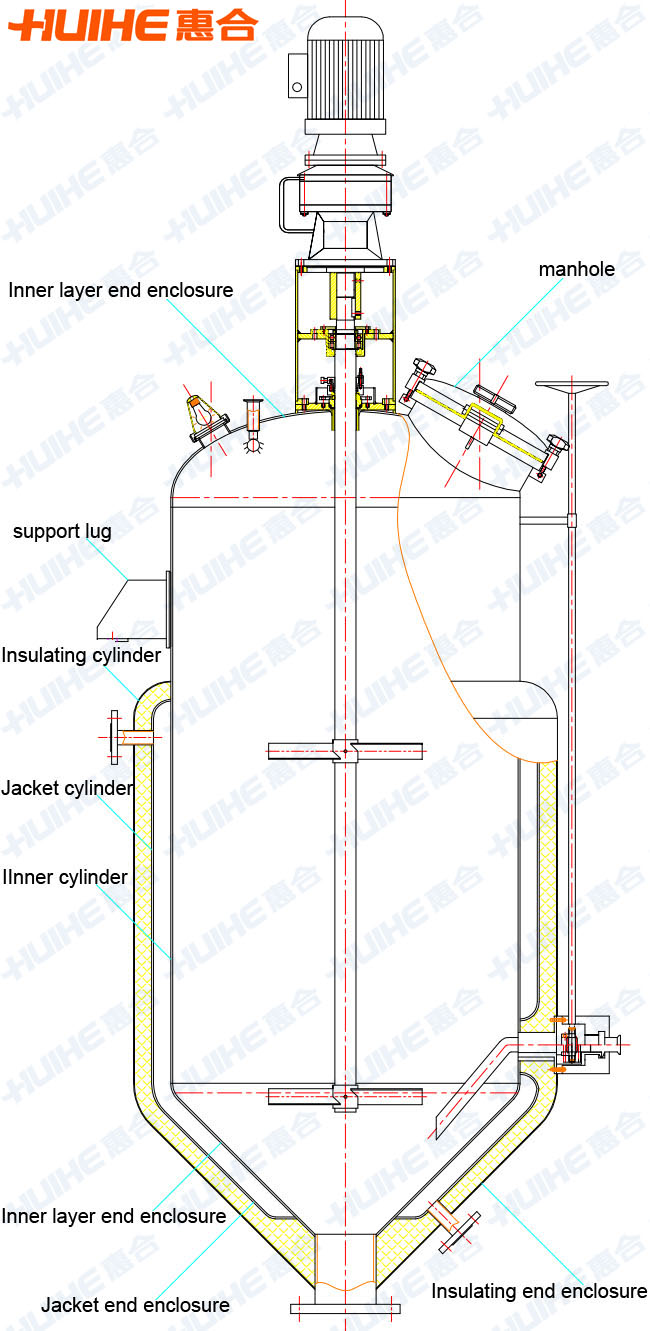

Structure of Alcohol Precipitation Tank

This alcohol deposition recovery equippment is enclosed by the ellipsoidal head clip set, the cylinder body with cone bottom, inner tank installed stirring and special liquid pipe.

Characteristics of Alcohol Precipitation Tank

1, Stainless steel SUS304 or SUS306 manufacturing;
2, Equipped with high-pressure water automatic spray cleaning system;
3, It can connect the low temperature in jacketed cooling water;
4, Transmission part adopts mechanical seal, explosion-proof motor to ensure the production process;
5, Conform to GMP standard, the equipment surface mirror or inferior smooth processing.

Technical Parameters of Alcohol Precipitation Tank

Model		JC-330	JC-500	JC-1000	JC-1500	JC-2000		JC-3000	JC-6000
Volume （m³）		0.3	0.5	1.0	1.5	2.0		3.0	6.0
Heating transfer area（㎡）		1.8	3.0	4.5	6.5	7.5		8.5	13
Working temperature （℃）		Normal temperature ~-15
Jacket designed pressure （Mpa）		0.09-0.4
Pressure in tank（Mpa）		Normal pressure
Stirring power（KW）		0.75	0.75	1.5	2.2	2.2	3.0		5.0
Stirring speed（r/min）		72	72	72	72	72	72		125
Body size（mm）	Inter diameter	600	800	1000	1200
	Outer diameter	800	1000	1200	1400
	Height	900	1350	1700
