Your are here: Home >> Products >>Multi-functional Alcohol Recycling Concentrator
Multi-functional alcohol recycling concentrator is designed by Hangzhou Huihe Company adopts circulation and vacuum negative pressure evaporation way, owns advantages of simple operation, small covering area, is in accordance with GMP requirements.
Directory
- Characteristics of Multi-functional Alcohol Recycling Concentrator
- Technical Parameters of Multi-functional Alcohol Recycling Concentrator
- Multi-functional Alcohol Recycling Concentrator Finished Picture
Characteristics of Multi-functional Alcohol Recycling Concentrator
1. Alcohol recycling
Big capacity of recycling, vacuum operation improves the techniques flow of the equipment. High recycling rate of 95% reduces the alcohol loss to less than 5%. Energy cost reduced by 30%, small investment and big profit.
2. Contracting the liquid material
Combination of external cycling and vacuum vaporizing, quick vaporizing，high condensing specific gravity （1.3-1.4）,simple operation, small area taking; nice appearance, heater, vaporizer and heat keeper integrated and stainless steel board as the protection for external heat-keeping. The alcohol deposition recovery equippment is according to GMP standard.
Technical Parameters of Multi-functional Alcohol Recycling Concentrator
|
Model |
DH-500 |
DH-1000 |
DH-1500 | |
|
Parameters | ||||
|
Evaporation |
500 |
1000 |
1500 | |
|
Recycle alcohol |
200 |
350 |
500 | |
|
Recycle alcohol degree |
85 alcohol degree | |||
|
Working pressure |
0.03-0.09 | |||
|
Evaporation temperature |
40-85℃ | |||
|
Vacuum degree |
Above 620mmHg | |||
|
Concentration proportion |
1.2-1.4 | |||
|
Weight Kg |
1300kg |
1850kg |
2850kg | |
|
Body size mm |
Length |
2000 |
2200 |
2500 |
|
Width |
1000 |
1200 |
1300 | |
|
Height |
3000 |
3300 |
3500 | |
Notes:
The technical parameters of alcohol deposition recovery equippment is standard configuration. Any specific requirements, please let us know.

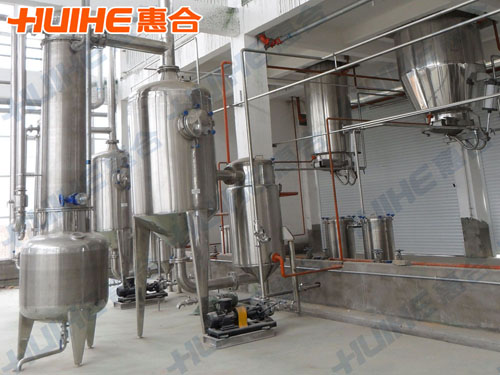

Multi-functional Alcohol Recycling Concentrator Finished Picture
