The pressure tank produced by Hangzhou Huihe Company belongs to high quality stainless steel tank, having advantages of corrosion resistant and excellent chemical compatibility. Large diameter is easy for clean and multiple port is easy for installation of temperature, pressure and other monitoring device. The pressure tank is provided with pressure gauge, discharging pressure valve, importing air valve and discharging liquid interface.
Directory
- Structure of Pressure Tank
- Usage of Pressure Tank
- Technical Parameters of Pressure Tank
- Pressure Tank Finished Picture
Structure of Pressure Tank
This series of stainless steel pressure tank is composed by stainless steel cylindrical tube, fluctuation ellipsoidal sealed head and equipped with health manhole, cleaning ball and level liquid gauge.
1, it is single layer structure.
2, material is stainless steel SUS304 or SUS316L.
Usage of Pressure Tank
It is widely used in petroleum, chemical, rubber, pharmaceutical, food industries, etc.
Technical Parameters of Pressure Tank
|
Volume |
300L |
400L |
500L |
600L |
800L |
1000L |
1500L |
2000L |
3000L |
|
Body diameter（mm） |
Φ800 |
Φ800 |
Φ900 |
Φ1000 |
Φ1000 |
Φ1000 |
Φ1200 |
Φ1300 |
Φ1600 |
|
Body height（mm） |
600 |
800 |
800 |
800 |
1000 |
1220 |
1220 |
1500 |
1500 |
|
Motor power（kw） |
0.55 |
0.55 |
0.75 |
0.75 |
0.75 |
0.75 |
1.5 |
2.2 |
3 |
|
Stirring speed (rpm) |
36r/min | ||||||||
|
Working pressure |
≤0.09Mpa | ||||||||
|
Working temperature |
＜100℃ | ||||||||
|
Accessories |
Sanitary manhole、cleaning ball、safety valve、pressure gauge | ||||||||
Notes:
1. The technical parameters of reactor tank is standard configuration. Any specific requirements, please point out.
2. The jacket working pressure≤ 0.09Mpa, also can be made according to customers’ requirements.
3. The process parameters that need provided when choosing the deployment tank: the nature of material, working pressure, temperature, specific requirements, etc.

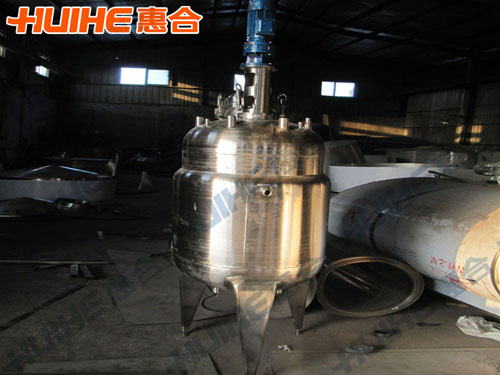

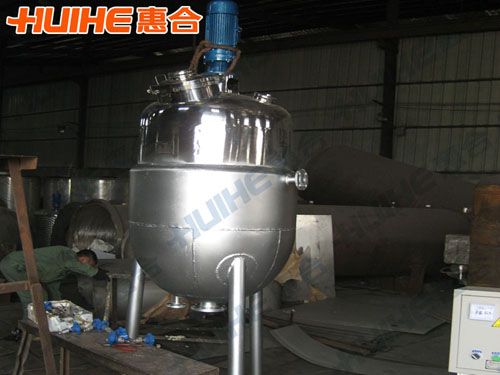

Pressure Tank Finished Picture
