Sugar Dissolving Tank

Sugar dissolving tank designed by Hangzhou Huihe Company is a kind of new stainless steel tank . The pot body is composed by cylindrical tube of stainless steel sealing head, forming the heat transfer sandwich. With outside polished by stainless steel packing, the surface is beautiful. The contents and cold water are dissolved in the pot, then steam ventilated into jacket, in order to achieve the purpose of heat and melt. And a tube line with jacket is equipped with pressure gauge and safety valve, in order to check the pressure in the jacket, and ensure the safety in production.

Classification of Sugar Dissolving Tank

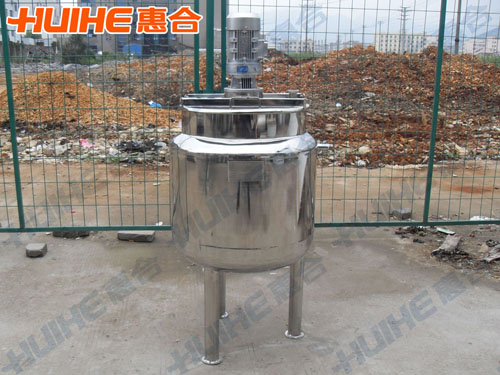

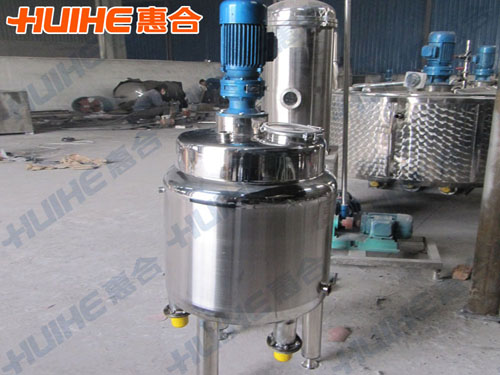

live demonstration of deployment tank

1. According to Structure: opening on the head & ramp bottom，opening on the head & conical head on the bottom , up & down conical sealed head, up & down elliptical sealed head

2. According to Heating Type: there are Steam Heating and Electric Heating

3. According to Volume: there are 100L-1000L, also can design and facture in accordance with customers’ requirements.

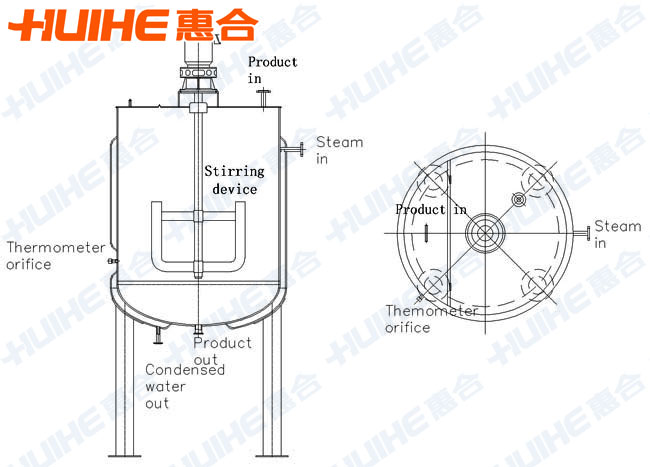

Structure of Sugar Dissolving Tank

Usages of Sugar Dissolving Tank

It is mainly used for dairy, sugar, beverage, food and other elements mixing with all kinds of drugs to stir homogeneously. And now it has been the indispensable equipment in the dairy products, beverage, and pharmaceutical factories.

Characteristics of Sugar Dissolving Tank

1. The insulation material is polyurethane foam or pearl cotton which is high temperature-resistant and anti-aging.

2. The interface adopts international standard ISO fast loading camp, inner pot uses imported stainless steel SUS304 or SUS306L.

3. The seal head adopt imported sanitary mechanical agitation seal or magnetic seal agitating device, stirring speed are optional.

Technical parameters of Sugar Dissolving Tank

Volume	300L	400L	500L	600L	800L	1000L	1500L	2000L	3000L
Body diameter（mm）	Φ800	Φ800	Φ900	Φ1000	Φ1000	Φ1000	Φ1200	Φ1300	Φ1600
Body height（mm）	600	800	800	800	1000	1220	1220	1500	1500
Motor power（kw）	0.55	0.55	0.75	0.75	0.75	0.75	1.5	2.2	3
Stirring speed (rpm)	36r/min
Working pressure	≤0.09Mpa
Working temperature	＜100℃
Accessories	Sanitary manhole、cleaning ball、safety valve、pressure gauge

Notes：

1. The technical parameters of deployment tank is standard configuration. Any specific requirements, please point out.

2. The jacket working pressure≤ 0.09Mpa, also can be made according to customers’ requirements.

3. The process parameters that need provided when choosing the deployment tank: the nature of material, working pressure, temperature, specific requirements, etc.
