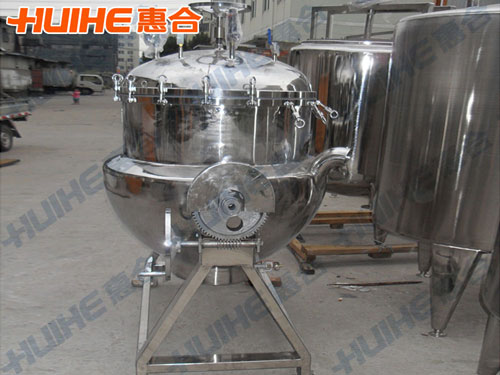

Rice Dumplings Cooking Pot

Rice dumplings cooking pot is mainly used for rice dumplings, milk, sugar, beverage, medicine and other elements and all kinds of drugs to mix and store. It has been the indispensable equipment in making rice pudding, dairy products, beverage and pharmaceutical.

Classification of Cooking Pot

1, according to structure form, it can be divided into tilting cooking pot, and vertical (fixed) cooking pot.

2, according to heating mode, it can be divided into electric heating cooking pot, steam heating cooking pot and gas heating cooking pot

3, according to the process need, it can adopt stirring equipment and equipment without stirring.

Structure of Rice Dumplings Cooking Pot

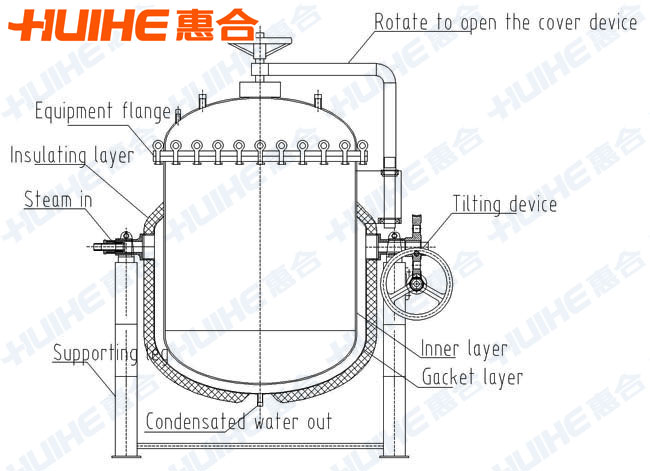

Cooking pot is mainly composed by pot body and the stents. Pot body is double-layer structure, intermediate ventilated with steam to heat. Up and down are all ellipsoidal sealed head, the upper sealed head and cylinder is connected by flange, it can spiny open the cover, within cooking basket.

Usages of Rice Dumplings Cooking Pot

The application scope of cooking pot:

Candy: (boil sugar and hard candy production under normal pressure), sugar and starch syrup ingredients, melt, and cook, to reconcile section (with mixing and scraping the edge). Have the advantages of large heated area, high thermal efficiency, uniform heating, short liquid material boiling time and easy to control the heating temperature .

Pastry: Fried process (precise heating temperature).

Sugar dissolving system: the gouache combined grinding, interlayer pot, thermodynamic filter, super high temperature sterilizer compose sugar dissolving system.

Drinks: it can be used to tea and other material to cook, heat and mix.

Candied fruit: it can be used to boil the candied fruit in advance (to take off the bitter), sugar boil process.

Canned food: it is used for material to boil and mix.

Sauce products: used for mixing and sterilizing process in broad bean paste, the sweet, peanut butter, chili sauce, cow paste, etc.

Characteristics of Rice Dumplings Cooking Pot

1、Cooking pot belongs to stainless steel tank and takes a certain pressure steam as heat source (also can choose electrical heating), owns characteristics such as large heating area, high thermal efficiency, uniform heating, short liquid material boiling time and easy to control the heating temperature.

2、It has beautiful outlook, easy installation, and convenient operation, is safe and reliable.

Technical Parameters of Cooking Pot

Volume		50	100	200	300	400	500	600	800	1000
Stirring power（Kw）		0.55	0.55	0.75	1.1	1.1	1.5	1.5	2.2	2.2
Thermal power （Kw）		9	9	15	18	18	24	24	27	30
Interface size	Steam tube	3/4”			1”				2”
	Condensate tube	3/4”				1”
Jacket working pressure		≤0.09Mpa（can be adjust ）
Stirring speed		36 r/min（can be adjust ）
