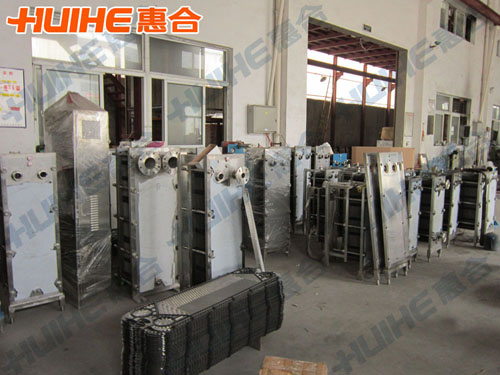

Stainless Steel Plate Heat Exchanger

Stainless steel plate heat exchanger is made of a group ripple forms slece, there are holes on the metal steel.Hot to transmit between passing two fluids of hole these happen. It’s widely used to wash,cooling and heating of liquid on pharmacy or other liquid food products.

Classification of Stainless Steel Plate Heat Exchanger

1. according to the plate material: it can be divided into SUS304, SUS316, and titanium plate

2. according to the pads materials: it can be divided into butadiene acrylonitrile rubber (NBR), EPDM, fluorine rubber (TP)

3. according to the piece area, there are 0.15㎡, 0.24 ㎡, 0.65 ㎡, 0.85 ㎡, 1.54 ㎡ and 1.8 ㎡

4. according to the stent material，there are iron stents and stainless steel support

Usages of Stainless Steel Plate Heat Exchanger

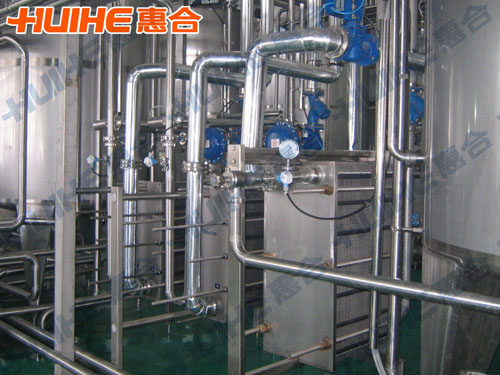

It is widely used in metallurgy, mine, petroleum, chemical industry, electric power, medicine, food, chemical fiber, paper making, textile, ship, heating and other departments, can be used for heating, cooling, evaporation， condensation， sterilization and waste heat recovery.

Structure of Stainless Steel Plate Heat Exchanger

Plate heat exchanger is formed by the fixed paddles, the plate, mobile baffle, pole, up and under guider and retaining bolt. Between the fixed paddles and mobile baffle, there is a series of fixed plate. Every piece of plate is with gasket, so a parallel closing port is formed, medium alternately flows in every two pieces of plates.

Characteristics of Stainless Steel Plate Heat Exchanger

1. high efficiency and energy saving: its heat transfer coefficient is in 3000 to 4500 kcal/m2 · ° C · h, 3 ~ 5 times higher than tubular heat exchanger.

2. compact structure: plates are closely arranged, compared with other types of heat exchanger, plate heat exchanger has less covering area and space, the area is only 1/5 of the tubular heat exchanger.

3. easy clean and convenient disassembling: plate heat exchanger fixes the plates by clamping bolts, thus making disassembling convenient, can open to clean any time. The bright board face makes high turbulent degree, so it is not easy to scale.

4. long service life: plate heat exchanger uses stainless steel or titanium alloy plate for repression, can resistant to all kinds of corrosive medium. The pads can change at will, and convenient in maintenance.

5. strong adaptability: plates are all independent components, according to requirements, it can increase or decrease process at will, various in form. It also can be used in all kinds of different process requirements.

Technical Parameters of Plate Heat Exchanger

Model	BR-0.06	BR-0.12	BR-0.2	BR-0.3
Heating transfer area of single piece（m²）	0.06	0.12	0.2	0.3
Corrugated shape	herringbone	herringbone	herringbone	herringbone
Plate thickness（mm）	0.6	0.7	0.7	0.7
Pads form	Clasp type	Clasp type	Clasp type	Clasp type
Tube diameter（mm）	32	38	51/80	51/100
Maximum working pressure （Mpa）	1.0	1.0	1.0	1.0
Maximum working temperature （℃）	150	150	150	150
