Strains Cultivating Tank

Strains cultivating tank belong to stainless steel tank equipment, it’s widely used in the field of dairy, beverage, biotechnology, pharmaceutical and fine chemical industry. Be used in the work of cultivating yogurt starter cultures.

Classification of Strains Cultivating Tank

1. According to Structure: opening on the head & conical sealed head on the bottom, up & down elliptical sealed head

2. According to Heating Type: there are Steam Heating and Electric Heating

3. According to Volume: there are 100L-1000L, also can design and facture in accordance with customers’ requirements.

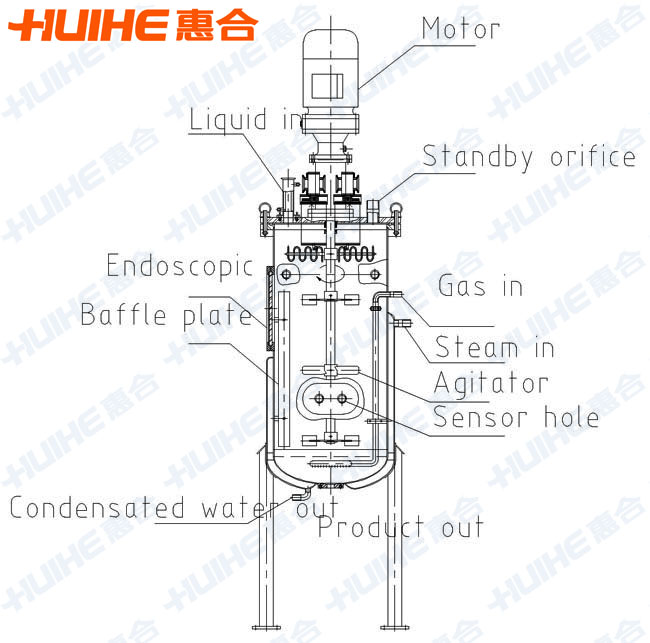

Structure of Strains Cultivating Tank

Body Material:

a). Stainless steel inner pot（SUS304/SUS316L）, carbon steel outer pot (Q235-B) treated with anti-rust paint

b). the whole machine is made of stainless steel (SUS304/SUS316L)

Usage of Strains Cultivating Tank

Strains cultivating tank apply to yogurt and lactobacillus drink liquor fermentation, brewing, seasoning, pharmaceutical, chemical and fungi cultivate, it can be heat cool and heat preservation, is special fermentation equipment which is fully enclosed health type.

Characteristics of Strains Cultivating Tank

1. Mirror polishing and wiredrawing two kinds of surface treatment technology.
2. All welding is argon gas protection and double-sided welding.
3. Insulation material: polyurethane or rock wool.
4. Foundation bolt: can adjust the height of the equipment, easy to install.

Technical Parameters of Strains Cultivating Tank

Volume	300L	400L	500L	600L	800L	1000L	1500L	2000L	3000L
Body diameter（mm）	Φ800	Φ800	Φ900	Φ1000	Φ1000	Φ1000	Φ1200	Φ1300	Φ1600
Body height（mm）	600	800	800	800	1000	1220	1220	1500	1500
Motor power（kw）	0.55	0.55	0.75	0.75	0.75	0.75	1.5	2.2	3
Stirring speed(rpm)	36r/min
Working pressure	≤0.09Mpa
Working temperature	＜100℃
Accessories	Sanitary manhole, cleaning ball、safety valve、pressure gauge

Notes:

1. The technical parameters of fermentation tank is standard configuration. Any specific requirements, please point out.

2. The jacket working pressure≤ 0.09Mpa also can be made according to customers’ requirements.

3. The process parameters that need provided when choosing the fermentation tank: the nature of material, working pressure, temperature, specific requirements, etc.
