Liquid Deployment Tank

Liquid deployment tank (also known as mixing tank) provides for the mixing of drinking water, irrigation agriculture, fire suppression, agricultural farming and livestock, chemical manufacturing, food preparation as well as many other possible solutions.

Classification of Liquid Deployment Tank

1. According to Structure: opening on the head & ramp bottom，opening on the head & conical sealed head on the bottom , up & down conical sealed head, up & down elliptical sealed head

2. According to Heating Type: there are Steam Heating and Electric Heating

3. According to Volume: there are 100L-1000L, also can design and facture in accordance with customers’ requirements.

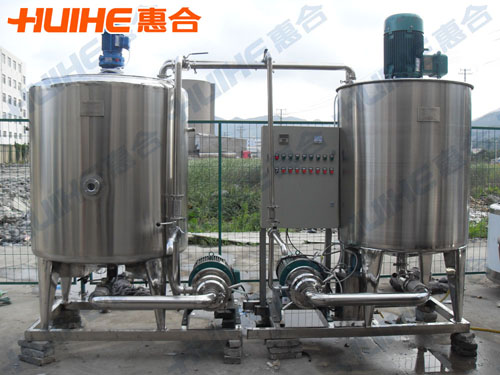

Live Demonstration of Deployment Tank

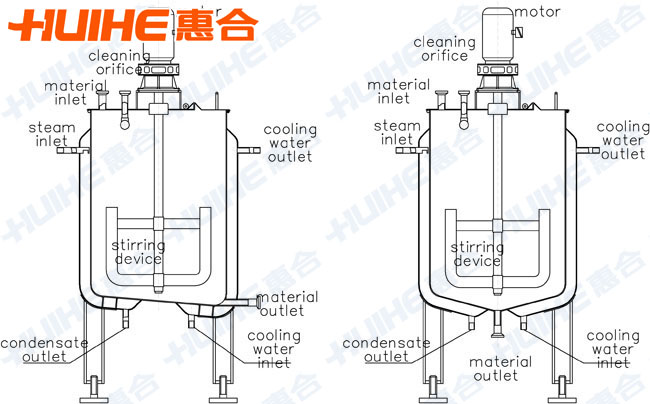

Structure of Liquid Deployment Tank

Body Material:

a). Stainless steel inner pot（SUS304/SUS316L）, carbon steel outer pot (Q235-B) treated with anti-rust paint

b). the whole machine is made of stainless steel (SUS304/SUS316L)

Usages of Liquid Deployment Tank

This stainless steel tank is mainly used for drinking water, irrigation agriculture,fire suppression,agricultural farming and livestock, chemical manufacturing,food preparation and so on.

Characteristics of Liquid Deployment Tank

1. All materials are sanitary stainless steels 304 or 316.
2. Humanized structure design and easy to operate.
3. Transition area of interior wall on tank adopts arc transition to ensure that no dead ends of sanitation.

Technical Parameters of Deployment Tank

Volume	300L	400L	500L	600L	800L	1000L	1500L	2000L	3000L
Body diameter（mm）	Φ800	Φ800	Φ900	Φ1000	Φ1000	Φ1000	Φ1200	Φ1300	Φ1600
Body height（mm）	600	800	800	800	1000	1220	1220	1500	1500
Motor power（kw）	0.55	0.55	0.75	0.75	0.75	0.75	1.5	2.2	3
Stirring speed (rpm)	36r/min
Working pressure	≤0.09Mpa
Working temperature	＜100℃
Accessories	Sanitary manhole、cleaning ball、safety valve、pressure gauge

Notes：

1. The technical parameters of mixing tank is standard configuration. Any specific requirements, please point out.

2. The jacket working pressure≤ 0.09Mpa, also can be made according to customers’ requirements.

3. The process parameters that need provided when choosing the deployment tank: the nature of material, working pressure, temperature, specific requirements, etc.
