JMFB Colloid Mill

JMFB colloid mill means split stainless steel colloid mill. The basic principles is when fluid and semi-fluid material go through the fixed gear and moved gear which is high-speed relatively linked, can be influenced by strong shear, friction and high-frequency vibration, and be effectively crushed, emulsified, homogenized. So that precision products can be made.

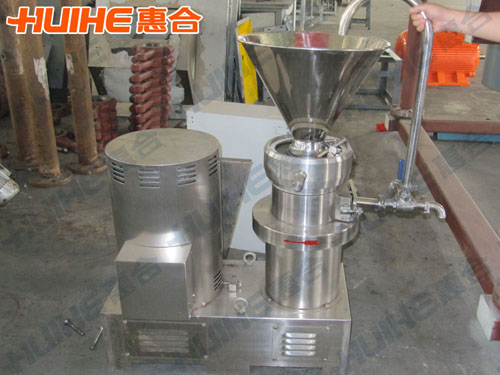

Live Demonstration of Colloid Mill

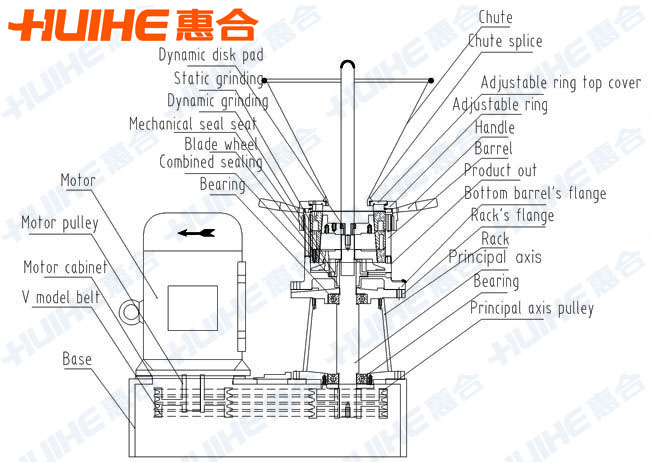

Structure of JMFB Colloid Mill

The main structures of colloid mill are grinding parts, the base transmission department and dedicated motor. The dynamic and still millstones in the core part and mechanical seal parts are the most key parts.

Therefore, according to the different natures of the materials, the selection must be different.

Usage of JMFB Colloid Mill

1. Food Industry: dairy products, chocolate, soy sauce, jam, peanut butter, butter and beverage

2. Chemical Industry: paints, lubricating oil, spices, dyes, emulsified asphalt, emulsified rubber, catalyst, paint coating etc.

3. Pharmaceutical Industry: cod liver oil, athlete cream, bee honey, pollen etc.

4. Daily Chemical Industry: shoe polish, toothpaste, cosmetics, balsam, soap, and detergent, etc

5. Other Industry: building industry, paper industry, plastic industry, battery industry, etc

Characteristics of JMFB Colloid Mill

This split colloid mill has the advantages of simple structure, convenient maintenance and is suitable for high viscosity materials and large particles materials.

Technical parameters of JMFB Colloid Mill

Model		JML-50		JML-80	JML-100	JML-120	JMF-80	JMF-100	JMF-120	JMF-140	JMF-180
Emulsification fineness um （single cycle or multi-cycle）		5~40		3~40	2~40	2~40	3~40	2~40	2~40	2~40	2~40
Adjustment range mm		1-0.01		1-0.01	1-0.01	1-0.01	1-0.01	1-0.01	1-0.01	1-0.01	1-0.01
Output t/h change according to materials			0.01-0.2	0.3-1	0.5-2	0.7-3	0.3-1	0.5-2	0.7-3	1-4	2-5
Motor	Power kw		1.1	3	5.5	7.5	4	5.5	7.5	11	15
	Pressurev		380	380	380	380	380	380	380	380	380
	Stirring speed r/min		2880	2880	2880	2880	2880	2880	2880	2880	2880
Grinding diameter mm			∮50	∮80	∮100	∮120	∮80	∮100	∮120	∮140	∮180
Discharge port diameter （時(shí)）			∮15	∮25	∮32	∮40	∮25	∮32	∮40	∮40	∮65
Cooling water pipe （時(shí)）			∮1/8〞	∮1/4〞	∮1/4〞	∮1/4〞	∮1/4〞	∮1/4〞	∮1/4〞	∮1/4〞	∮1/4〞
Dimensions	Length mm		420	520	560	560	640	750	750	820	980
	Width mm		280	400	420	420	550	620	620	700	800
	Height mm		760	900	950	950	1030	1080	1080	1250	1550
Weight kg			45	84	113	135	210	275	295	325	450

Notes:

1. The technical parameters of colloied mill in the chart are standard configuration. Any specific requirements, please let us know.

2. JML-50 is experimental colloid mill, also can be changed to 220V voltage.

3. The process parameters that need provided when choosing the Colloid Mill: the nature of material, working pressure, temperature, specific requirements, etc.
